Nintendo Power

Posted on by
2

A few months back I had to pass on a pretty rare NOS Playchoice 10 kit for the Nintendo ‘Red Tent’ style Vs Dualsystem table units. Just recently what I’m pretty sure is the same kit resurfaced, without the common but expensive motherboard. Sniping that auction allowed me to acquire some very rare parts for the very reasonable sum of ~$72.

That grab prompted me to drag one of my storage bins out from the depths of the garage and re-test something I’d set aside for quite a while. It’s a complete single-monitor Playchoice 10 kit for a cabaret cabinet that I acquired something like a decade ago when Arctic Music & Vending in Anchorage closed and had its assets auctioned off.

2014-01-23_20-40-03_810

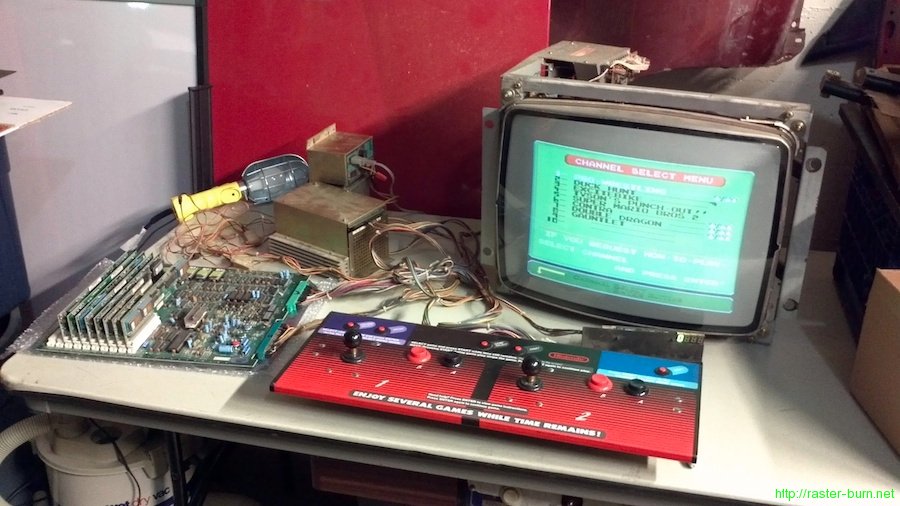

I’d given it a try fairly recently, but thought it was a dud since I didn’t get any video. This time around I took a closer look at the monitor I was using to test it and realized one of the cables between boards on the chassis was disconnected. I reconnected it and the game came right up. Miiiiiight have felt a little dumb after that discovery.

2014-01-23_20-40-22_240

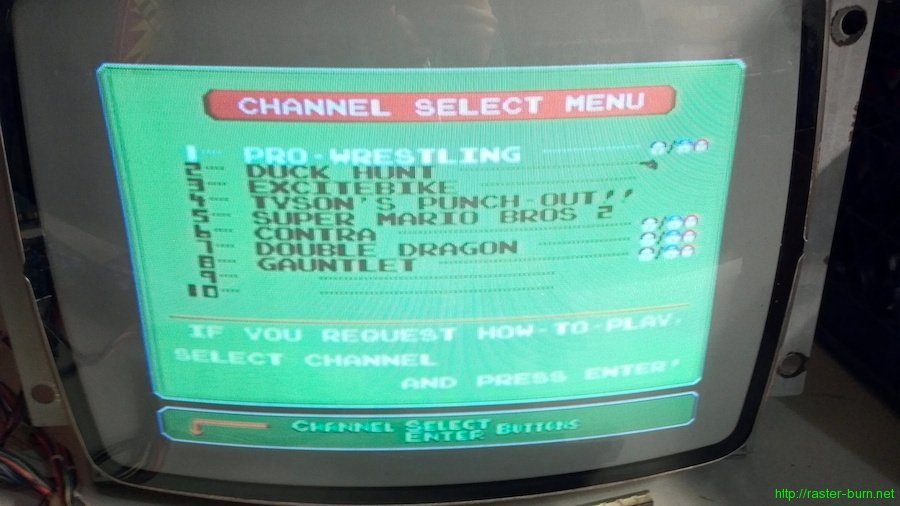

Went through and tested the cartridges I have, and found them all in fine shape. I came to figure out I have an older production motherboard, which means the Reset button on the control panel doesn’t function with the board set to free play mode. A little research revealed that you can hold the Channel Select and Enter buttons together for a few seconds and it’ll pop you back to the channel menu like the Reset button is supposed to. Not pictured on the menu are two more copies of Punch Out, and The Goonies.

2014-01-25_19-14-00_849

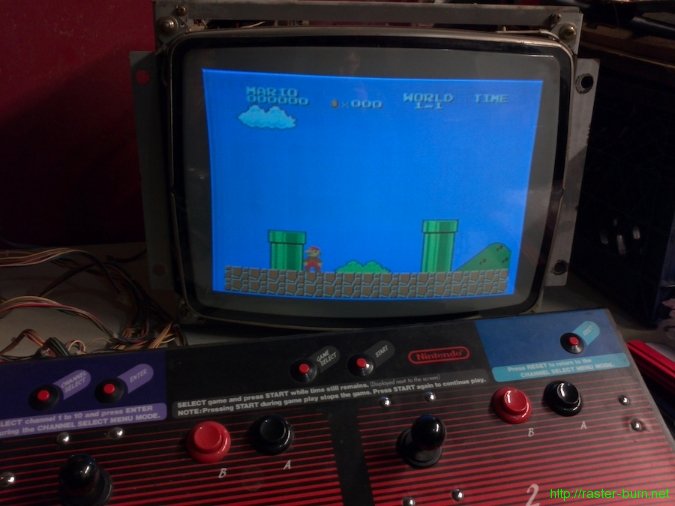

I also took the opportunity to test the Vs system board that came in my Red Tent, since the Playchoice 10 harness is close enough to the Vs one to at least boot a board on. Super Mario Bros came right up and played fine, but I wasn’t quite sure how to get to the other ‘side’ of the board with Dr. Mario.

Unfortunately testing the monitors in the Red Tent didn’t go as well. One of them is blowing a fuse at F701 on power up, and the other seems to be working except for the light show that comes out of the flyback cage when you turn it on and the flyback transformer starts arcing. So, some repairs needed there.

Also still need to dig into the R-Type upright cabinet I’ve got. It’s been sitting in a corner since I got it, supposedly it plays but I haven’t had the time to drag it out and see what’s going on with it.

Clockwork

Posted on by
Reply

Way back when I frequented municipal surplus auctions with my dad. Among the many lots we picked up over the years were several pallets of fixtures and equipment from one of Anchorage’s high schools, removed during repairs performed following a fire and subsequent remodel.

There’s still a bit of it squirreled away, mostly mid-century relics dating to the school’s original construction. Among those, there’s several boxes of old Simplex slave clocks. These things all ran off a pulse sent out periodically from a master console. Pretty cool looking, but also not very useful on their own.

I’m converting one of the nicer examples out of the stash to use a movement out of an old General Electric 2131 kitchen wall clock. The GE unit was from the 70s, old enough to have a nice smooth-second-hand movement but new enough to have a hideous cheap plastic case with a supremely tacky design. So, I took its heart for the cause…

2014-01-16_20-22-57_407sm

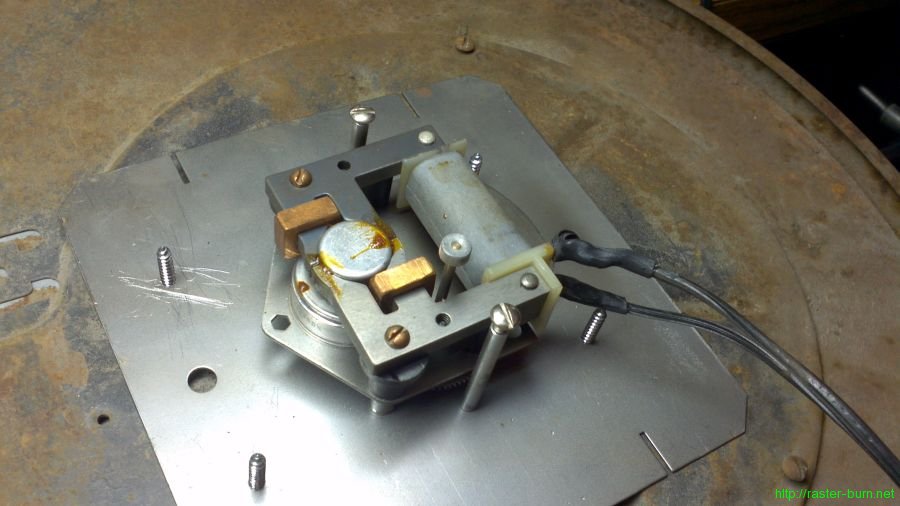

The movement went on pretty easy, just had to drill a few holes.

2014-01-16_21-07-35_48sm

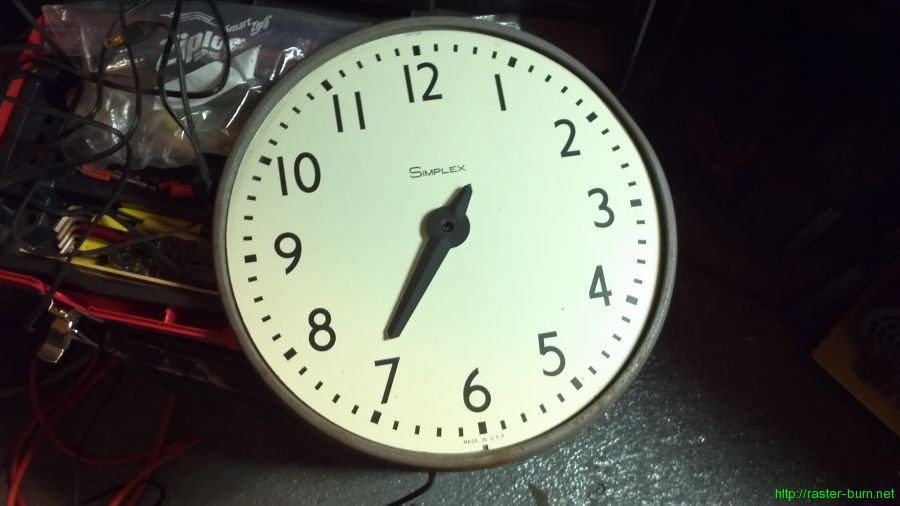

The hands were a little more complicated. The GE movement fit almost flush to the face in its original application, but the Simplex case is designed for a recessed movement with the shafts extended much further.

2014-01-16_20-35-09_504sm

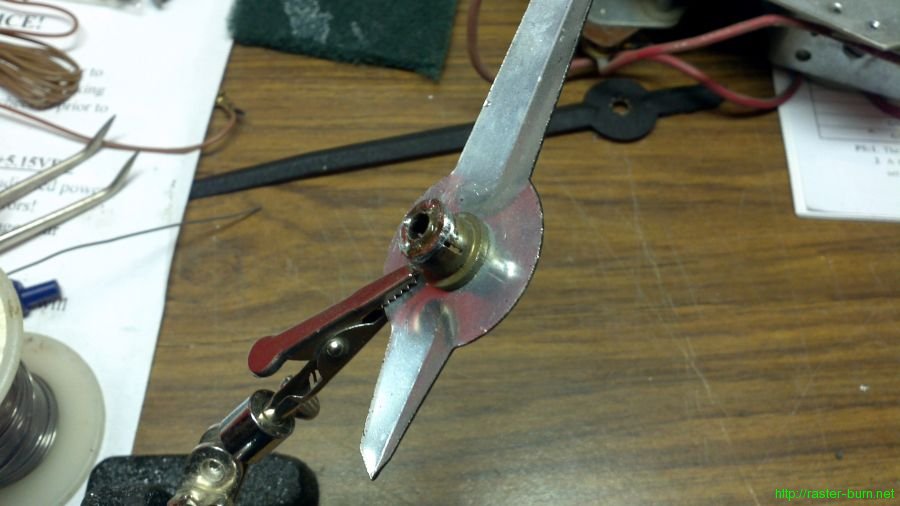

The hour hand had enough of an offset to work with, so I soldered the press fit base of the GE hour hand onto the end of the Simplex hand’s shaft and put it into place.

2014-01-16_21-05-04_727sm

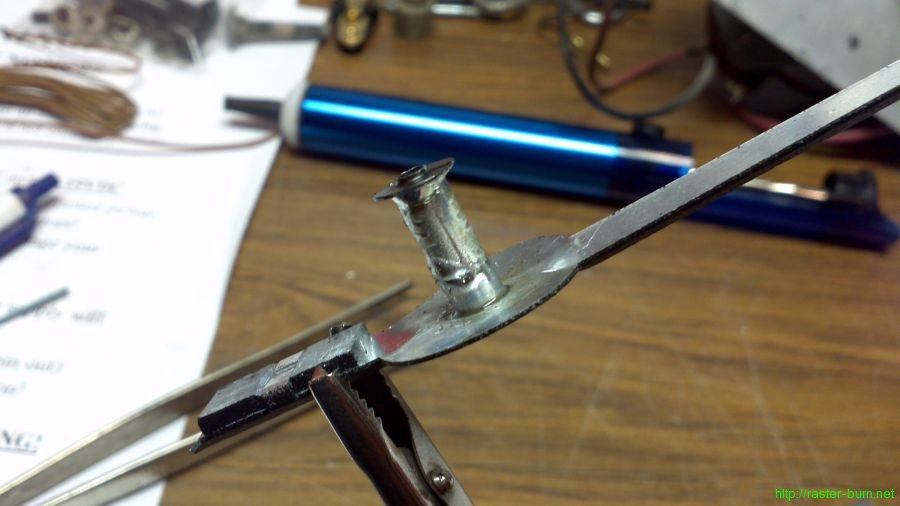

The minute hand didn’t have an extension fitted to it, so I improvised a bit. I pressed the core of a butt splice connector into the hole in the hand and soldered it into place, then soldered the press fit base onto the other end. I still need to grind down the press fit part a bit so that it’ll clear the middle of the hour hand and fit into place.

Was too late to break out the Dremel and grind it down tonight, so part 2 and final assembly will have to wait ’til later.

On the Street – 198x Subaru GL Wagon

Posted on by
Reply
2014-01-05_18-54-07_620sm

There’s a million of these old Subarus still kicking around, and they all seem to be that particular shade of blue. Ski racks are a pretty common addition… The snowmachine rack is less commonplace. Don’t think I’d want to be driving behind this fine piece of frontier engineering under any circumstances.
